Precision Trak & Stop Kit
Take the guesswork out of cutting wood to length.
Turn your miter saw into a precise cutting system
Adjustable stops position your workpiece for repeatable, reliable results
Precision Lens Cursor for fast, accurate positioning
Production Stop and Swing Stop provide great results
L-shaped base design makes alignment and mounting easy
Includes 8' (2438mm) of Trak in 2' (610mm) long sections that can be used on the right or left side of the saw, or split between both sides
2 self-adhesive measuring tapes correctly measure cut lengths on both sides of the blade
ITEM#: KMS8000
Out of Stock

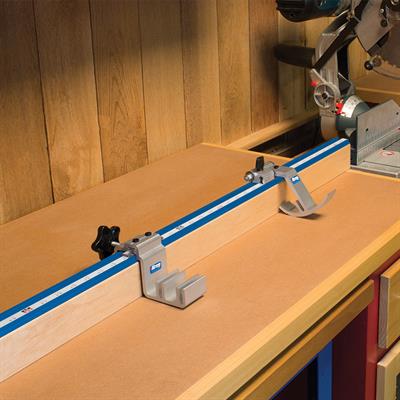

Take the guesswork—and your tape measure and pencil—out of cutting wood to length. Our Precision Trak and Stop Kit allows you to turn a miter saw into a precise cutting system. Simply position the stop at the dimensions you'd like to cut using the precision lens cursor, place the board against the stop, and cut to that exact length every time. You build the support wings out of plywood (or another sheet material), and then add the Trak. Outfitting your saw to cut perfectly-sized workpieces couldn’t be simpler!
Perfect for a Variety of Applications
The most common setup for the Precision Trak & Stop Kit is with a miter saw, but many woodworkers find it handy to add to their radial arm saw or drill press. No matter where you use the Precision Trak & Stop Kit, you’ll find it much faster and accurate than any other wood-cutting method.

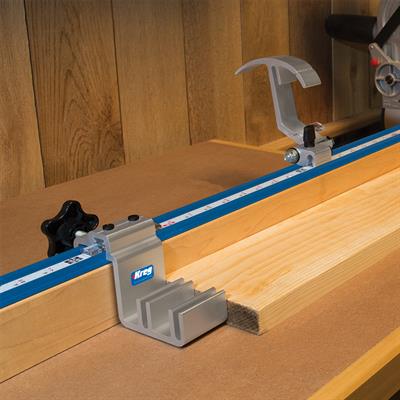

Production Stop
Designed to stand up to the rigors of repetitive cuts in an industrial environment, the Production Stop drops onto the top of the fence and features dual lens cursors for convenient use on either side of the blade.

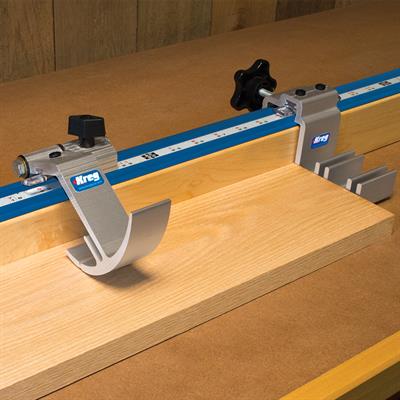

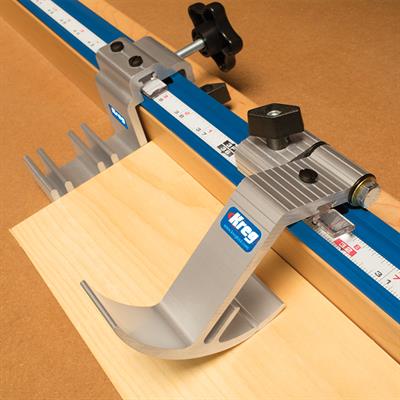

Swing Stop
The Swing Stop gives you a precise measurement when you need it and swings out of the way when you don’t Simply push a board into the curved face of the stop to push it temporarily up out of the way, or swing the stop up. Like the Production Stop, it features a Precision Lens Cursor for fast, pinpoint positioning.
Shop-Made Support Wings
Build a simple plywood or MDF box to match the height of your saw, and then add a back fence that reaches 21/4" (57mm) above the saw table for the stops to glide upon. Instructions and mounting hardware for the Trak are included.
Rigid Aluminum Fence
Incredibly strong and built-to-last, our anodized-aluminum Trak features an L-shaped base that makes alignment and mounting to any 3/4" (19mm) thick board a snap. The Trak has a groove along the top to accept the included self-adhesive measuring tapes. The Trak is split into four 2' (610mm) long sections, giving you setup options: 4' (1219mm) on each side of the saw, 2' (610mm) on one side and 6’ (1829mm) on the other, or all 8' (2438mm) on one side.
Specs
| Fence |
Aircraft-grade aluminum |
| Finish |
Anodized for easy clean-up |
| Cutting Capacity |
96" (2438mm) minimum |
| Length |
(4) 2' (610mm) sections for 8' (2438mm) of Trak length |
| Measuring Tape |
(1) 12' (3658mm) left-to-right reading |
| Includes |
(4) 2' (610mm) pieces of Top Trak, Swing Stop, Production Stop, 12' (3657mm) L-to-R reading |
| Notice | |
| Manual | North American Manual |
