Kreg Jig® Mini

Simple.
Simplistic, compact design
Unlimited material thickness and width positioning
Hardened-steel drill guide with lifetime warranty
Wood-chip relief hole for easy drilling
Glass-reinforced nylon body
Guide to help fully seat plugs

ITEM#: MKJKIT

Out of Stock

Description


Simple.
The Kreg Jig® Mini is good for very specific applications where the smallest jig possible is required. The simplistic design includes the hardened-steel drill guide of the other jigs but does not include a reference fence, so material thickness adjustments must be made manually.

Unlimited Material Thickness
The Kreg Jig® Mini is the only Kreg Jig® that does not include a positioning fence. This fenceless design allows you to make precise angle and stock depth adjustments as needed, making the Mini the most positionable Kreg Jig® available.

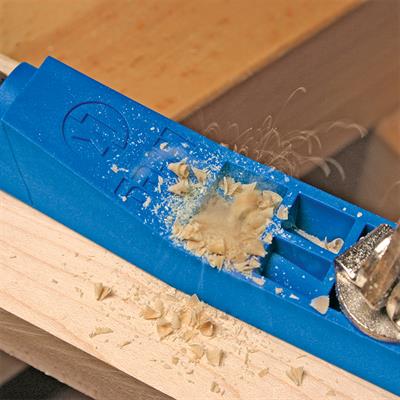

Wood-Chip Relief Hole
With the Kreg Jig® Mini, you don’t have to keep removing the drill bit to clean out the hole. A wood-chip relief hole in the jig gives the removed material a place to go, so you can keep on drilling.

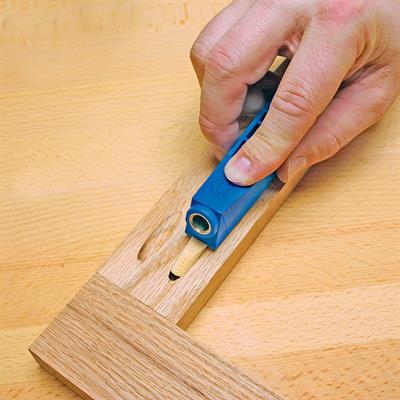

Plug-Setting Feature
If you decide to conceal or decoratively accent your pocket holes with our solid wood pocket hole plugs, the Mini’s plug setting feature is the fastest, easiest, and safest way to do so.

Hardened-Steel Drill Guides
Precise pocket holes are a guarantee with the Kreg Jig® Mini because the hardened-steel drill guide keeps the bit from deflecting as it hits the workpiece.

Specs

Body Material

Glass-filled nylon

Number of Drill Guides

(1) 3/8" (9mm) diameter standard Kreg pocket hole

For Use with

Materials from 1/2" to 11/2" thick (12-38mm)

Clamping Method

Works with Kreg Face Clamps and a variety of other clamps

Screw-Centering Ability

1/2" (12mm) to unlimited

Warranty

Lifetime Kreg Drill Guide warranty

Includes

Kreg Jig® Mini, Kreg drill bit, stop collar, Allen wrench, and owner’s manual.


Manual North American Manual
