Kreg Jig® K5
Advanced Features for Building with Wood
- Front-mounted handle makes clamping easy
- Ratcheting clamp mechanism adjusts without tools
- Storage wings provide built-in storage for bits and accessories
- Swiveling dust collection port accepts any standard vacuum hose
- Adjustable workpiece stop mounts on either side for easy repeat drilling
- Stop-collar setting block makes drill bit setup easy
- Quick-release pin holds drill block securely in place
ITEM#: K5
Out of Stock
Description
Advanced Features for Building with Wood
The Kreg Jig® K5 incorporates the best features of every Kreg Jig® that came before, with innovative upgrades you’ve never seen. That starts with a clamping mechanism that you can quickly adjust, without tools or adjusting nuts, to match your workpiece thickness. Just slide the clamp into place, “click” the large front-mounted clamp handle, and your jig is set to hold your workpiece tight every time.
You’ll find large support wings to hold your workpiece steady—plus, they open up to provide handy storage for bits and accessories. Add in a batch of other great features, like a swiveling dust collection port, spring-loaded stop for the drill guide block, and, of course, the ability to remove the guide block for portable use, and you have—quite simply—the most advanced Kreg Jig® yet.
Fast, Simple Setup

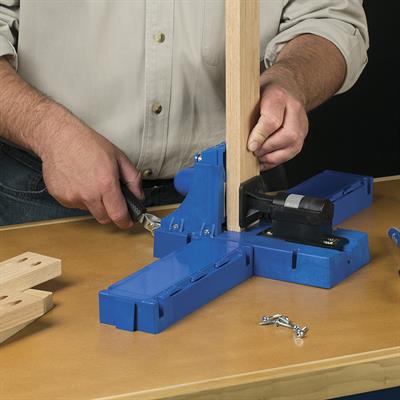

When you’re ready to get started building, the Kreg Jig® K5 makes it simple. Just select your screw based on the thickness of your wood, set the stop collar using the drill bit setup block, pull the spring-loaded pin to adjust the drill guide block, and then set the workpiece clamp.
Easy Thickness Adjustment

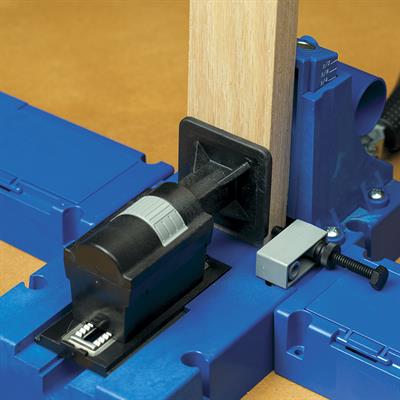

The Kreg Jig® offers our simplest workpiece clamping system ever. The ratcheting clamp simply slides into place against your workpiece. Then, you lift the handle until you hear and feel two “clicks,” and that’s it. Now your clamp is set until you change to a different material thickness.
Support with Built-In Storage

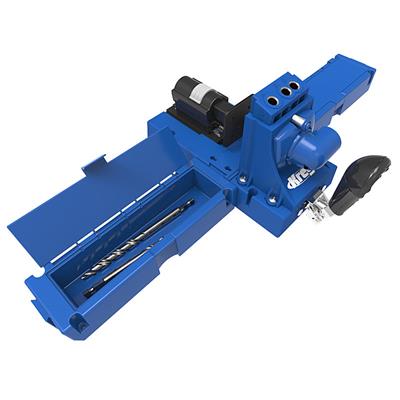

Two large support wings can be attached quickly and easily to both sides of the K5 base. This way, long workpieces get solid support and won’t tip. Plus, there’s a large storage compartment under the lid in each wing where you can keep your Kreg drill bits, screws, and accessories close at hand, but out of the way.
Swiveling Dust Collection Port
The Kreg Jig® K5 comes with a removable dust port that swivels from side to side so that you can position it exactly where you want it, and then attach it to a standard vacuum house. This keeps your work area free of chips and debris, makes drilling easier, and prolongs drill bit life by reducing heat.
Advanced Features for Building with Wood
The Kreg Jig® K5 incorporates the best features of every Kreg Jig® that came before, with innovative upgrades you’ve never seen. That starts with a clamping mechanism that you can quickly adjust, without tools or adjusting nuts, to match your workpiece thickness. Just slide the clamp into place, “click” the large front-mounted clamp handle, and your jig is set to hold your workpiece tight every time.
You’ll find large support wings to hold your workpiece steady—plus, they open up to provide handy storage for bits and accessories. Add in a batch of other great features, like a swiveling dust collection port, spring-loaded stop for the drill guide block, and, of course, the ability to remove the guide block for portable use, and you have—quite simply—the most advanced Kreg Jig® yet.
Fast, Simple Setup
When you’re ready to get started building, the Kreg Jig® K5 makes it simple. Just select your screw based on the thickness of your wood, set the stop collar using the drill bit setup block, pull the spring-loaded pin to adjust the drill guide block, and then set the workpiece clamp.
Easy Thickness Adjustment
The Kreg Jig® offers our simplest workpiece clamping system ever. The ratcheting clamp simply slides into place against your workpiece. Then, you lift the handle until you hear and feel two “clicks,” and that’s it. Now your clamp is set until you change to a different material thickness.
Support with Built-In Storage
Two large support wings can be attached quickly and easily to both sides of the K5 base. This way, long workpieces get solid support and won’t tip. Plus, there’s a large storage compartment under the lid in each wing where you can keep your Kreg drill bits, screws, and accessories close at hand, but out of the way.
Swiveling Dust Collection Port
The Kreg Jig® K5 comes with a removable dust port that swivels from side to side so that you can position it exactly where you want it, and then attach it to a standard vacuum house. This keeps your work area free of chips and debris, makes drilling easier, and prolongs drill bit life by reducing heat.
Specs
| Body Material |
Glass-filled nylon |
| Number of Drill Guides |
(3) standard Kreg® pocket holes |
| For Use with |
Materials from 1/2" to 11/2" thick (12-38mm) |
| Drill-Guide Spacings |
9/16", 7/8", 17/16" |
| Clamping Method |
Toggle clamp on benchtop base |
| Screw-Centering Ability |
1/2", 5/8", 3/4", 7/8", 1", 11/8", 11/4", 13/8", 11/2" |
| Warranty |
Lifetime Kreg® Drill Guide warranty |
| Includes |

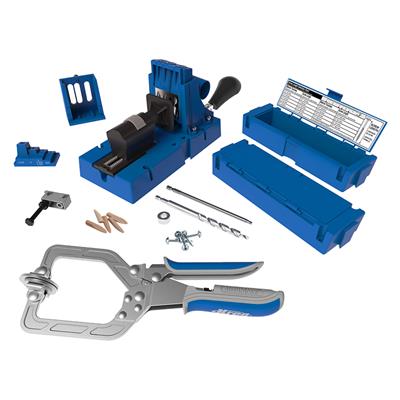

Kreg Jig® K5 base with ratcheting front-side clamp, extension wings, swiveling dust-collection port, drill guide block, spacer block, workpiece stop, drill bit setup block, stepped drill bit, 6" (152mm) driver bit, stop collar, Allen wrench, Hex wrench, starter Kreg Screw set, starter pocket-hole plug pack, and 3 downloadable project plans. |
| Manual | North American Manual |
